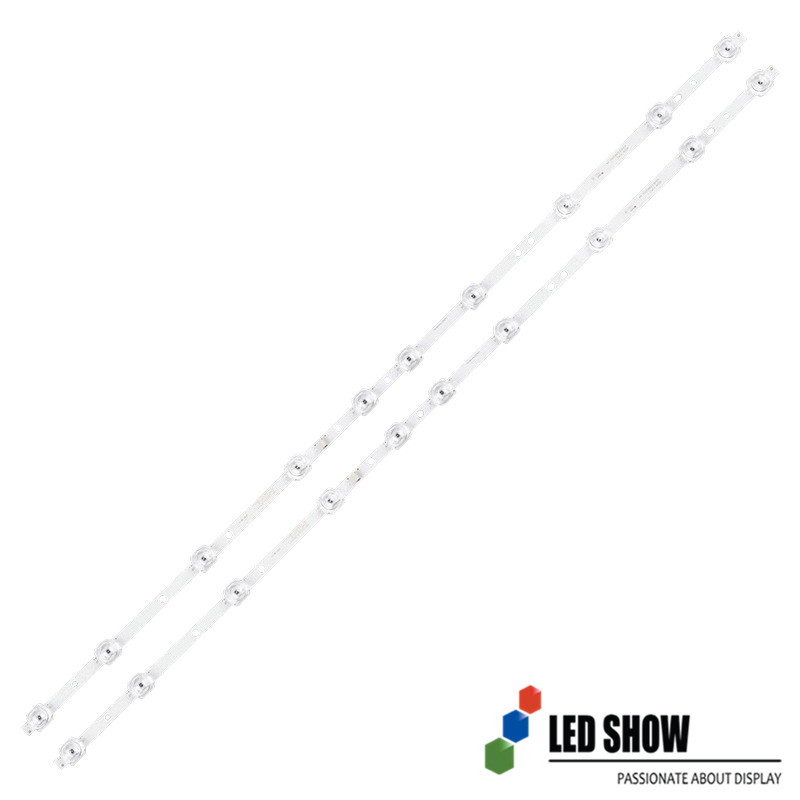

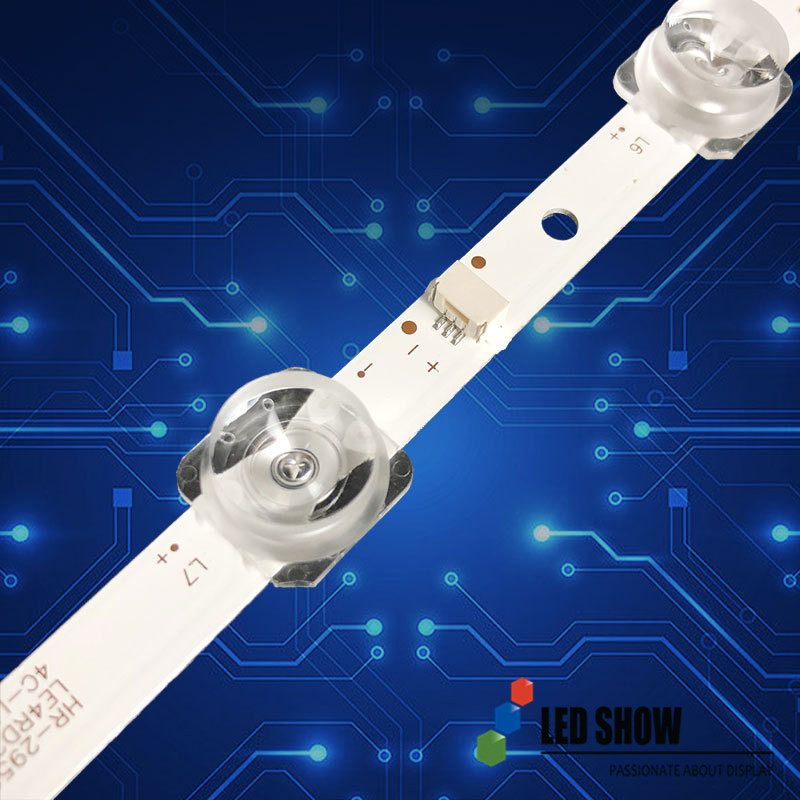

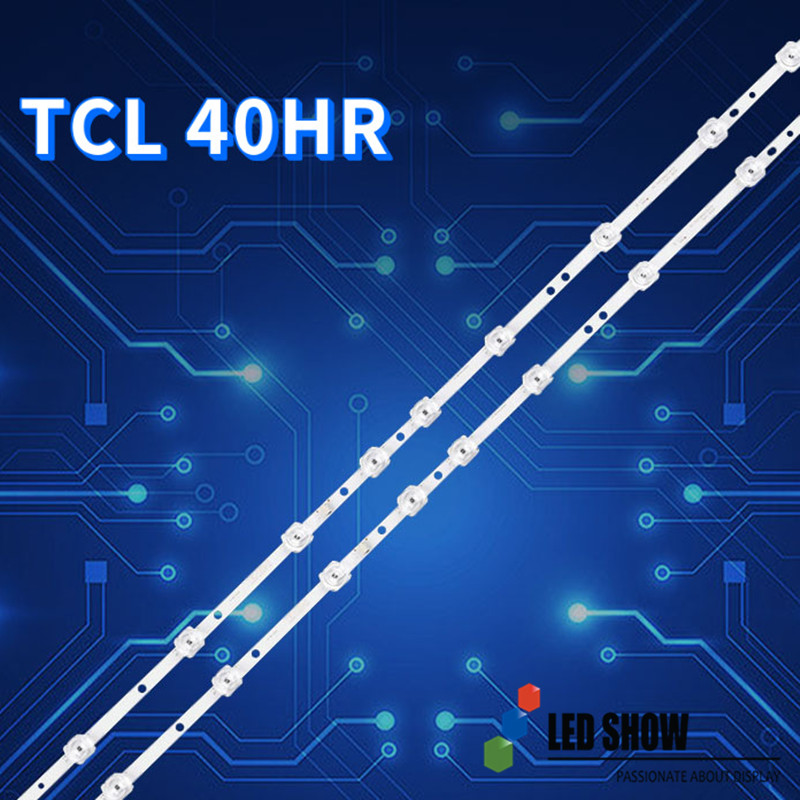

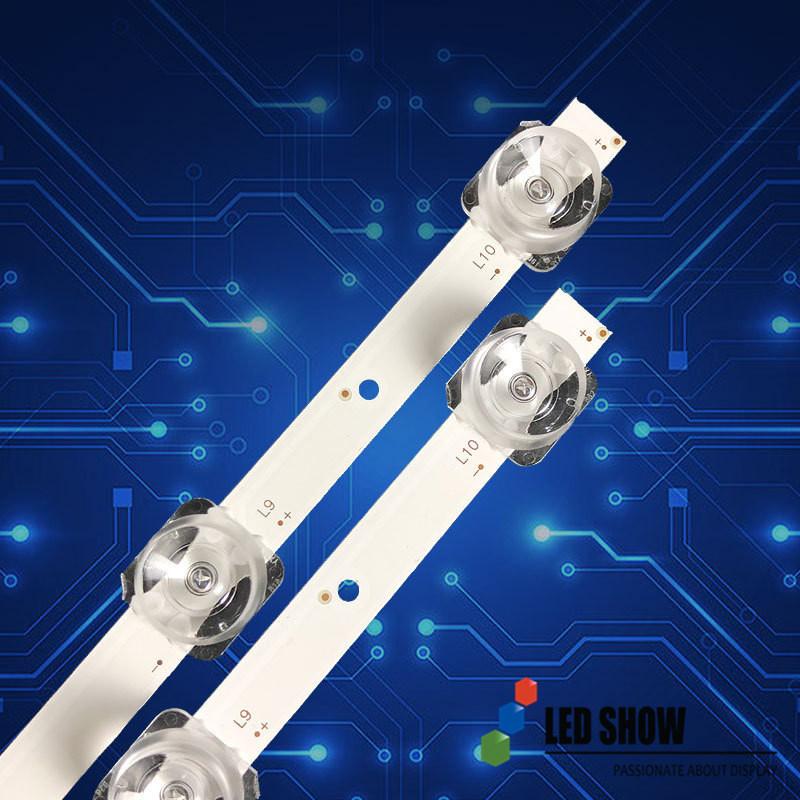

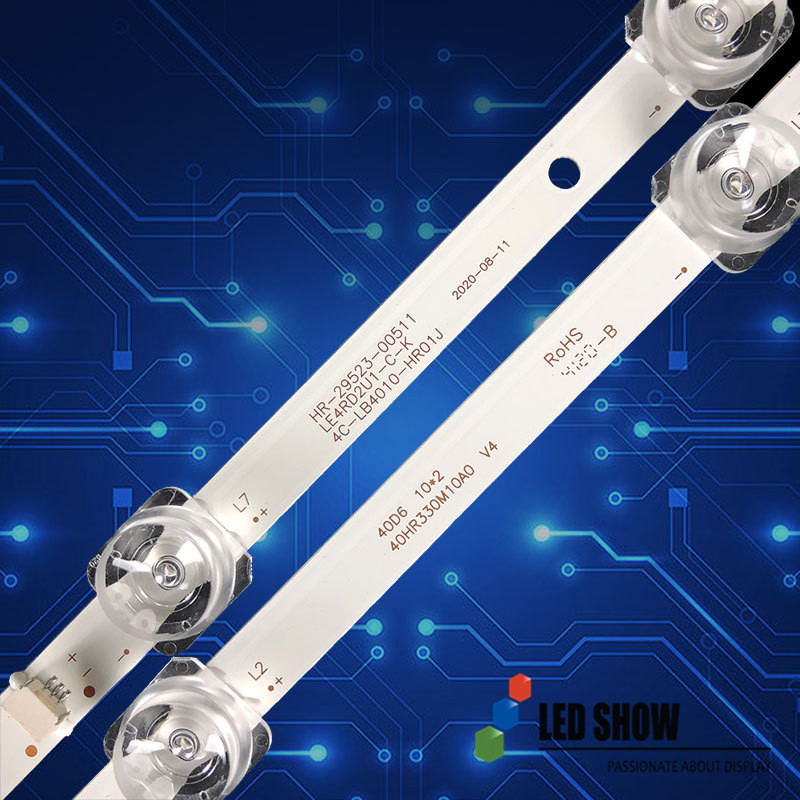

TCL 40HR LCD TV Backlight Strip

TCL 40HR LCD TV Backlight Strip

Is your TCL 40HR LCD TV suffering from a dim display, dark spots, or no backlight at all? A faulty backlight strip could be the culprit. Replacing it can restore your TV’s brightness and picture quality.

In this comprehensive guide, we’ll cover:
✔ Symptoms of a failing backlight strip
✔ Step-by-step replacement instructions
✔ Tips for a successful repair

Signs Your TCL 40HR LCD TV Backlight Strip is Failing

Before replacing the backlight, check for these common symptoms:

• · Dim or flickering screen (audio works but picture is too dark)

• · Dark patches or uneven lighting

• · No display at all (but sound still plays)

• · TV turns on but screen remains black

If you notice these issues, your TCL 40HR backlight strip likely needs replacement.

How to Replace the Backlight Strip in a TCL 40HR LCD TV

· Tools You’ll Need:

• · Phillips screwdriver set

• · Plastic pry tools (to avoid screen damage)

• · Replacement backlight strip (compatible with TCL 40HR)

• · Anti-static gloves (prevents damage to LEDs)

• Suction cups (for safe LCD panel removal – optional but helpful)

Step-by-Step Replacement Process

1. Power Off & Disassemble the TV

• · Unplug the TV and remove the stand (if applicable).

• · Lay the TV face-down on a soft, flat surface.

• · Remove the back cover screws and carefully detach the rear panel.

2. Disconnect Internal Components

• · Locate and unplug the power supply and mainboard connectors.

• · Remove any shielding or brackets covering the LED strips.

3. Remove the LCD Panel (Handle with Care!)

• · Gently lift the LCD panel using suction cups or your fingers (avoid pressure on the screen).

• · Set the panel aside in a safe, clean area.

4. Extract the Old Backlight Strip

• · Locate the faulty LED strip (usually along the edges or behind the diffuser layers).

• · Carefully disconnect the LED ribbon cable and remove the strip.

5. Install the New Backlight Strip

• · Align the new strip in the correct position.

• · Reconnect the ribbon cable securely.

6. Reassemble the TV

• · Place the LCD panel back carefully.

• · Reattach the back cover and screws.

• · Reconnect all internal cables.

7. Test Before Final Assembly

• · Plug in the TV and power it on to check the backlight.

• · If working correctly, complete reassembly.

Why Choose a High-Quality Replacement Backlight Strip?

• · Brighter, more uniform lighting

• · Longer lifespan (prevents frequent repairs)

• · Better heat dissipation (reduces failure risk)

DIY vs. Professional Repair – Which is Better?

✔ DIY Repair – Cost-effective if you’re comfortable with electronics.
✔ Professional Repair – Recommended if you’re unsure about handling delicate components.

Final Thoughts

A faulty TCL 40HR LCD TV backlight strip can ruin your viewing experience, but replacing it can bring your TV back to life. Follow this guide carefully, and if in doubt, consult a professional.
