LED Edge Light Strip

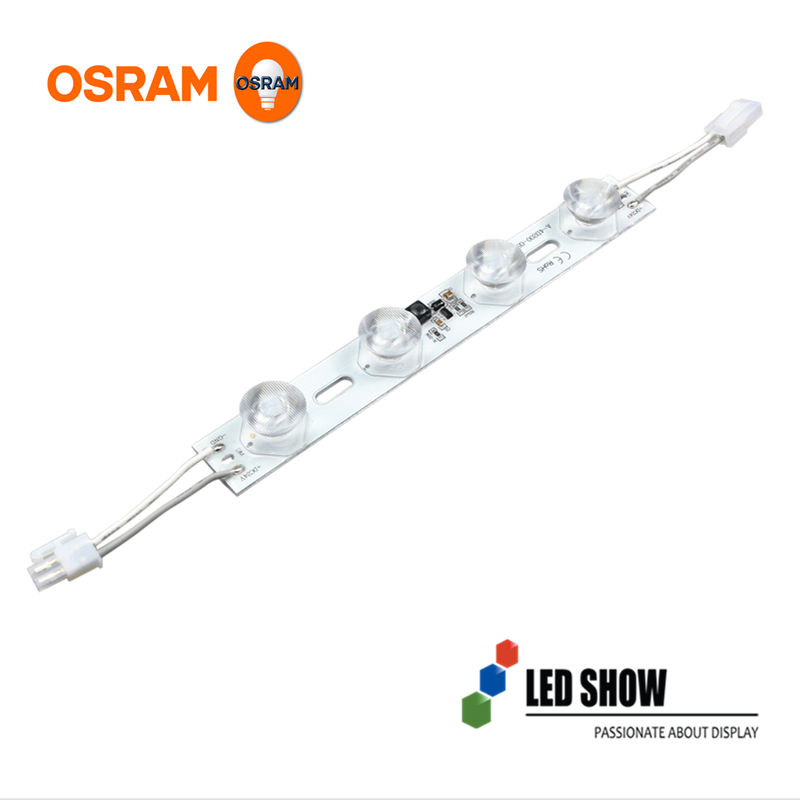

Osram LED light strip

LED Module for signs

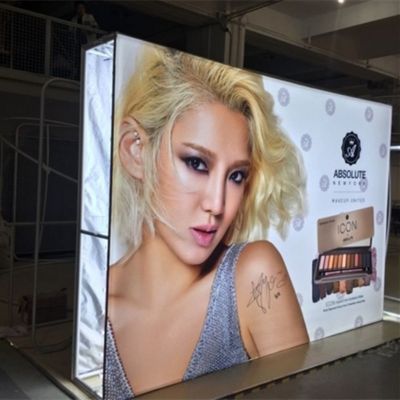

High Power LED Edge Lights provide brilliant and even illumination across the entire surface of your sign. The edge lighting technique ensures that the light is evenly distributed, eliminating hotspots and ensuring that your graphics and messages are displayed with clarity and vibrancy. This uniform lighting enhances readability and visibility, even from a distance, making your sign stand out among the crowd.

The high power output of these LED edge lights ensures a strong and intense illumination, making them suitable for both indoor and outdoor applications. Whether you're installing a storefront sign, a promotional banner, or an informational display, these lights provide the brightness necessary to catch the attention of passersby and create a lasting impact.

The sleek design of High Power LED Edge Lights adds a touch of sophistication to your signage. The slim profile and minimalistic appearance allow for seamless integration with your sign, enhancing its overall aesthetic appeal. The lights are discreetly positioned at the edges, providing a clean and modern look that complements any design or branding.

Installation of High Power LED Edge Lights is straightforward and hassle-free. They can be easily mounted and secured to the edges of your sign, ensuring a secure and stable connection. The lights are designed to be long-lasting and low maintenance, providing reliable performance without frequent replacements or repairs.

In addition to their impressive illumination, High Power LED Edge Lights are energy-efficient and environmentally friendly. They consume less power compared to traditional lighting methods, resulting in reduced energy costs and a smaller carbon footprint. This makes them a sustainable and cost-effective choice for your signage lighting needs.

Elevate your signage to a new level with High Power LED Edge Lights. Experience the brilliance, uniform illumination, and sleek design that these lights offer, and create captivating displays that leave a lasting impression on your audience.

Osram light strip accessories:

Absolute Maximum Ratings

Remarks:

DC24V input voltage is recommended.

Based on light strip's constant current working, the lower input voltage, the higher the input current, because the total power must remain unchanged, when the input voltage is higher, the lower the input current, the lower current on the aluminum plate copper reduces the temperature rise, heat and be more efficient.

Electrical and optical characteristics (Ta=25℃)

Omron led lighting TK-10O-260

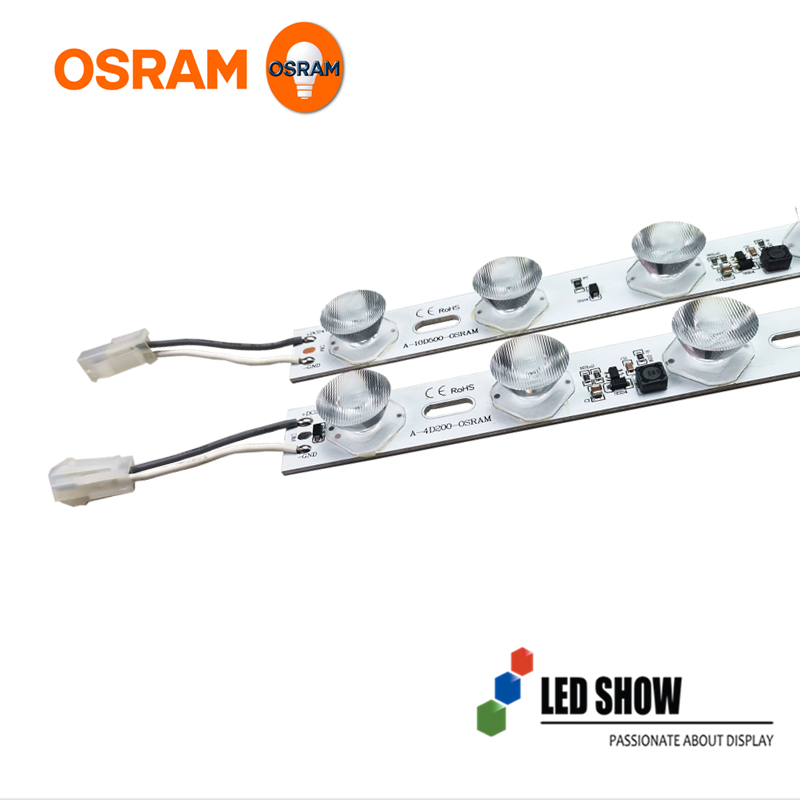

Dimension: L500*W25*H13.8

Quality led strip lights TK-4O-080

Dimensions: L200*W25*H13.8

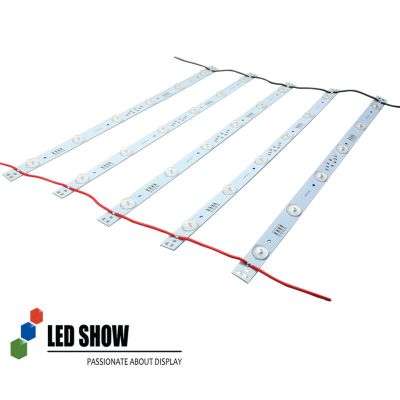

Construction wiring diagram:

The standard product of Osram led light strip is not dimmable, but the dimmable interface is reserved. Please specify when ordering. The wiring method of the dimmer is as follows.

≤20pcs is the number of a dimmer that can drive the light bar. It doesn’t mean that the light bar can be connected 20pcs in one string.

Recommended installation:

Aging test:

Remarks:

High-power LED light bar itself only has the basic cooling function, the user needs to paste or use fastening screws to fix the osram strip led on the aluminum frame for better heat sink. If there is no aluminum frame, special Shaped radiator is required, radiator size should be larger than 30mm wide and 30mm thick finned style. When the light box is installed in the environment for a long time below 28 degrees Celsius, the radiator size can be smaller.

FAQ:
1. Can it be cut?
***No. Because this aluminum PCB is 2mm thick, we have professional tools to cut it to be 3LEDs or 6 LEDs. Ordinary tools cann't cut easily. If you need to cut, it is best to inform us in advance, we will cut and solder the terminal connectors directly and deliver it for your convenience. It can also avoid cutting errors and damage due to problems such as insufficient sharpness of tools when cutting on your side.

2. Why there are two same appearance but different length?
***Because we have light length 50cm and 20cm, 20cm light is specially for the distance shorter than 50cm but longer than 20cm, if no lights, there will be dark area. For example, 250cm cannot use 5pcs 50cm lights directly, because the inner length is not 250cm, so maybe 4pcs 50cm lights and 1-2 pcs 20cm lights. Hope I make you clear for that.

3. What information should I provide for you, to see if it is suitable for our project?
***Good question!
We need information as below:

3. How should I know the LED edge light bar quantity I need?

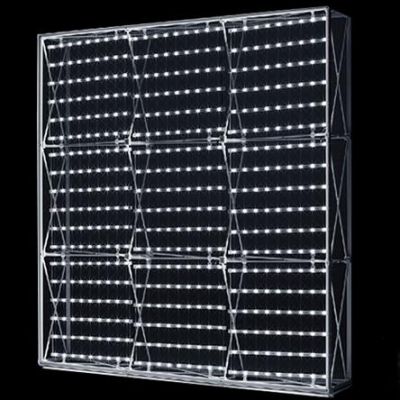

***Let's take an example. If your light box is 115 x 250 cm, you only need to install lights along 115cm sides. Our light distance can be 300cm from left to right side or top to bottom side. In this case, your light cost will be much lower.  Below is our 400cm * 300cm light box, we only installed lights along 400cm sides, no lights along 300cm sides. The light effect is quite good.
If you let us know your light box size, it will be better, we can give you the correct quantity directly.

Come and contact us, you deserve good quality and considerate service.

Contact us:

Attn: Kelly

TEL/Whatsapp: 0086 159 8581 9806

WeChat: 159 8581 9806

Mail: kelly@ledshowcn.com

Web:www.ledshowcn.com
