Osram led light strip

Product ID : TK-10O-260, TK-4O-080
Product Attributes :

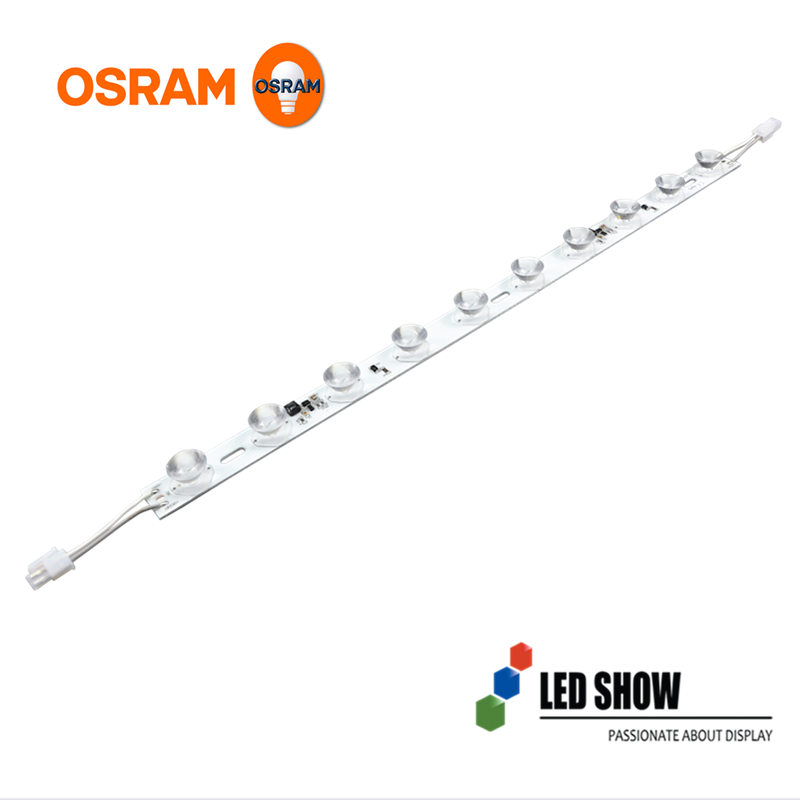

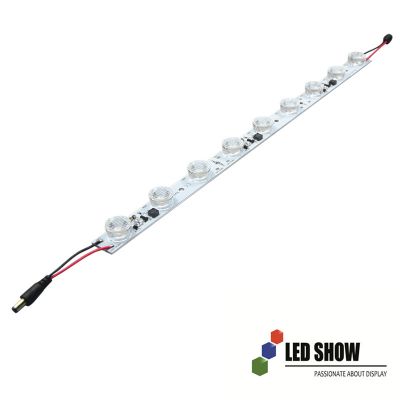

Osram LED light strip

Item NO.: TK-10O-260,TK-4O-080

LED chip: Osram

Input voltage: DC24V

Wattage: 26W

Lumen: 3600lm-4000lm

CCT: 2700-7000K

Beam angle: 10*30 degree


Product Description

Osram LED light strip

Osram LED light strip is an economical lighting solution for light box which thickness is at least 100mm for double sides lighting light box. This high power LED light bar is with super brightness and easy installation. DC24V input voltage is very safe for usage.

The aluminum profile is needed for this led light bar osram for better heatsink.


The strip led osram has some features as below:

  1. Osram LED chip is used.

  2. Energy saving lighting strip.

  3. Constant current, conversion efficiency is more than 95%.

  4. Uniform brightness.

  5. Compliance with international safety standards.

  6. Adopted PMMA high efficiency lens.

  7. DC24~30V wide voltage input, brightness remains unchanged.

  8. CE, RoHS certified.

  9. Warranty: 2 years


Osram light strip accessories:



Absolute Maximum Ratings

Parameter

Symbol

Rating

Unit



Min.

Typ.

Max.

Input Voltage

Vin

21

24

30

V

Input Current

I(rms)


0.94


A

Operating Tem.

Ta

-

45

60

Operating Hum.

Ha

5%-95%(No Water)

-

Storage Tem.

Ts

-30~60

Remarks:

DC24V input voltage is recommended.

Based on light strip's constant current working, the lower input voltage, the higher the input current, because the total power must remain unchanged, when the input voltage is higher, the lower the input current, the lower current on the aluminum plate copper reduces the temperature rise, heat and be more efficient.


Electrical and optical characteristics (Ta=25℃)


Model

Power

Luminous Flux (lm)

Luminous IntensityMCD

Color Temperature

Dominant Wavelength

Degree


W

Min

Typical

Max

k

nm

2θ1/2

TK-10O-260

26


3600

4000

2700~7000

60

10*30

TK-4O-080

10.4


1400

1600

2700~7000


10*30

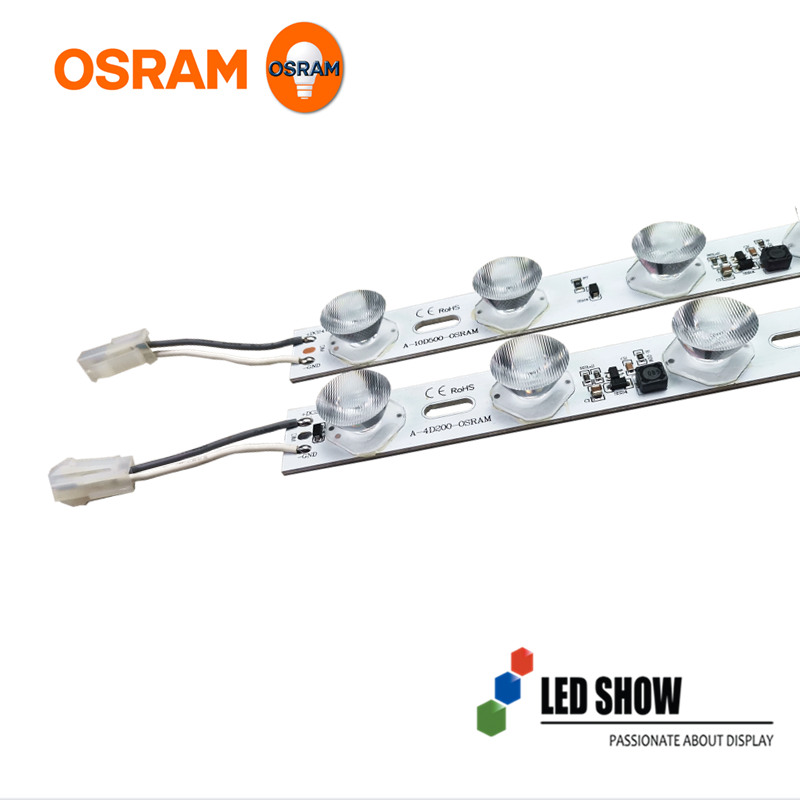

Omron led lighting TK-10O-260

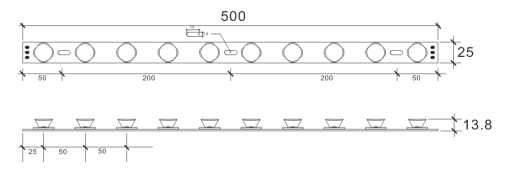

Dimension: L500*W25*H13.8

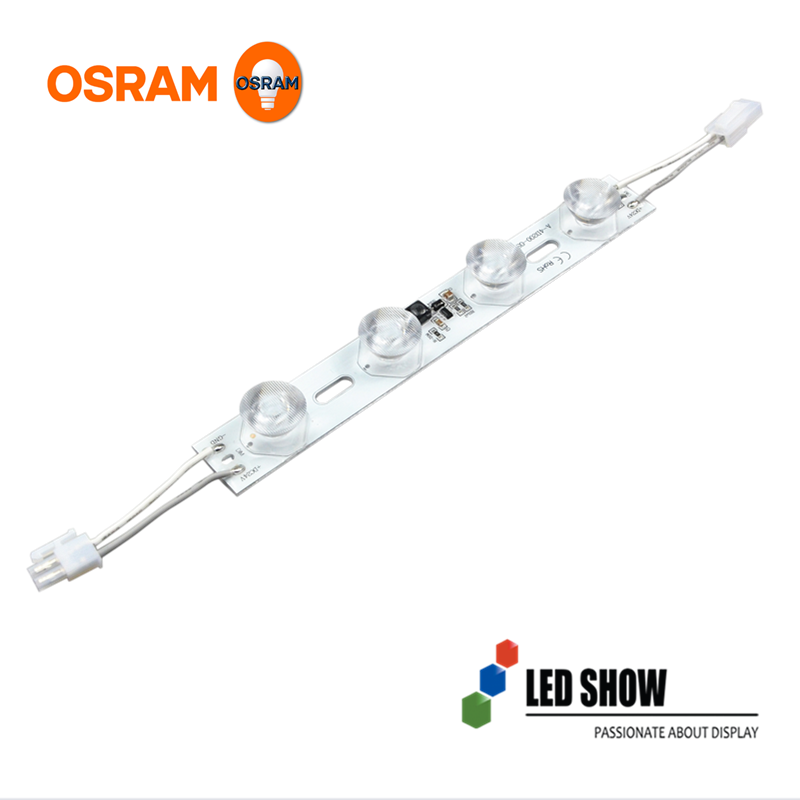

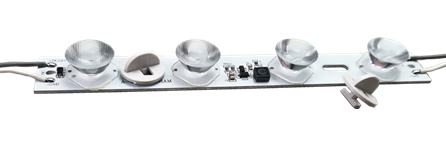

Quality led strip lights TK-4O-080

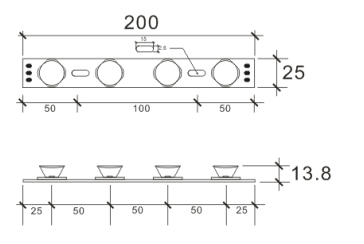

Dimensions: L200*W25*H13.8

size 4 .png


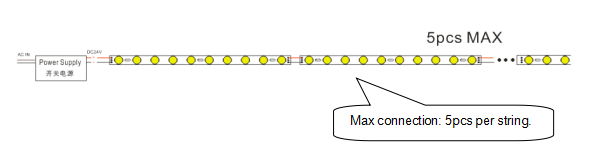

Construction wiring diagram:

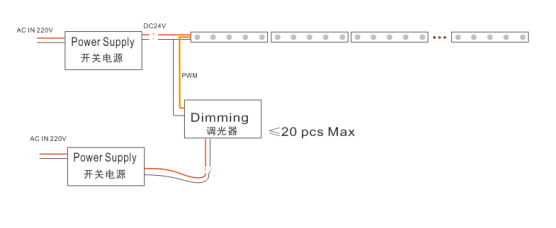

The standard product of Osram led light strip is not dimmable, but the dimmable interface is reserved. Please specify when ordering. The wiring method of the dimmer is as follows.

diagram 2.png

≤20pcs is the number of a dimmer that can drive the light bar. It doesn’t mean that the light bar can be connected 20pcs in one string.


Recommended installation:

Sign depth=80~100mm

Distance on two sides lower than 2000mm

Sign depth=120~150mm

Distance on two sides lower than 2500mm

Sign depth=200mm

Distance on two sides lower than 3000mm

Sign depth=300mm

Distance on two sides lower than 4000mm


Aging test:



Remarks:

High-power LED light bar itself only has the basic cooling function, the user needs to paste or use fastening screws to fix the osram strip led on the aluminum frame for better heat sink. If there is no aluminum frame, special Shaped radiator is required, radiator size should be larger than 30mm wide and 30mm thick finned style. When the light box is installed in the environment for a long time below 28 degrees Celsius, the radiator size can be smaller.


FAQ:
1. Can it be cut?
***No. Because this aluminum PCB is 2mm thick, we have professional tools to cut it to be 3LEDs or 6 LEDs. Ordinary tools cann't cut easily. If you need to cut, it is best to inform us in advance, we will cut and solder the terminal connectors directly and deliver it for your convenience. It can also avoid cutting errors and damage due to problems such as insufficient sharpness of tools when cutting on your side.

2. Why there are two same appearance but different length?

***Because we have light length 50cm and 20cm, 20cm light is specially for the distance shorter than 50cm but longer than 20cm, if no lights, there will be dark area. For example, 250cm cannot use 5pcs 50cm lights directly, because the inner length is not 250cm, so maybe 4pcs 50cm lights and 1-2 pcs 20cm lights. Hope I make you clear for that.

3. What information should I provide for you, to see if it is suitable for our project?
***Good question!
We need information as below:

1) What is your light box depth (thickness ) and length, width?
2) Double sided lighting or single sided lighting?
3) Waterproof needed ?
4) Need to be dimmable from 0-100% brightness?
5) Do you have your frame picture to share? We need to check if our fixing accessories are okay for your installation or not.
6) How many light boxes will you install lights?


3. How should I know the LED edge light bar quantity I need?

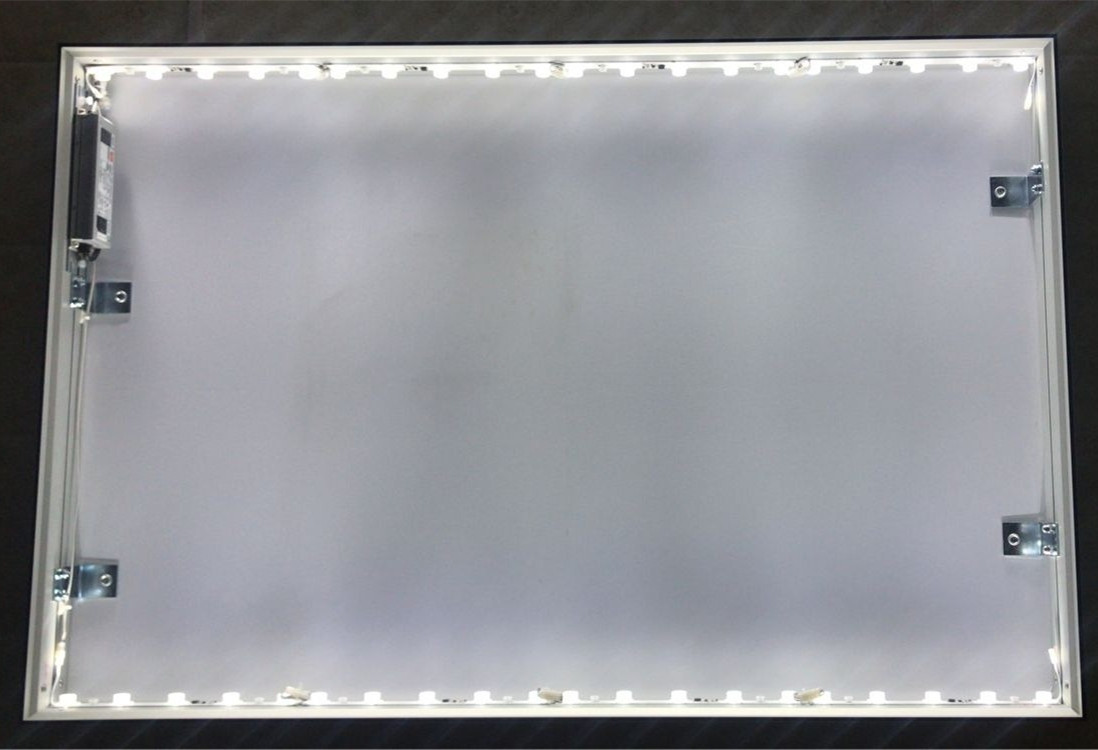

***Let's take an example. If your light box is 115 x 250 cm, you only need to install lights along 115cm sides. Our light distance can be 300cm from left to right side or top to bottom side. In this case, your light cost will be much lower.  Below is our 400cm * 300cm light box, we only installed lights along 400cm sides, no lights along 300cm sides. The light effect is quite good.
If you let us know your light box size, it will be better, we can give you the correct quantity directly.




Come and contact us, you deserve good quality and considerate service.
