LED light bars

LED light bars

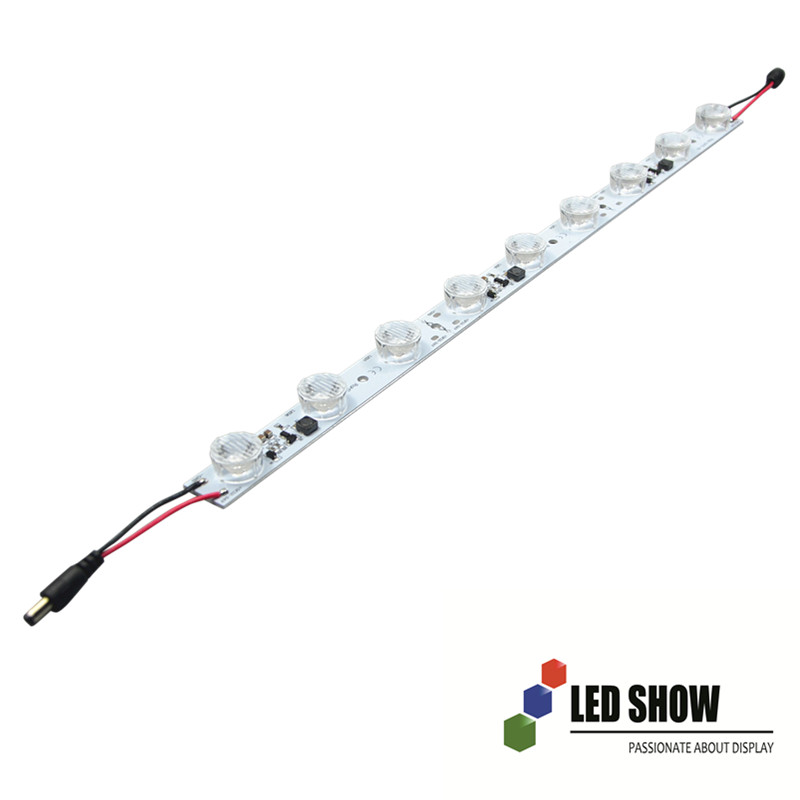

High power LED light bars is a lighting solution specially made for light box which thickness is more than 100mm for single side lighting, 150mm for double sides lighting.

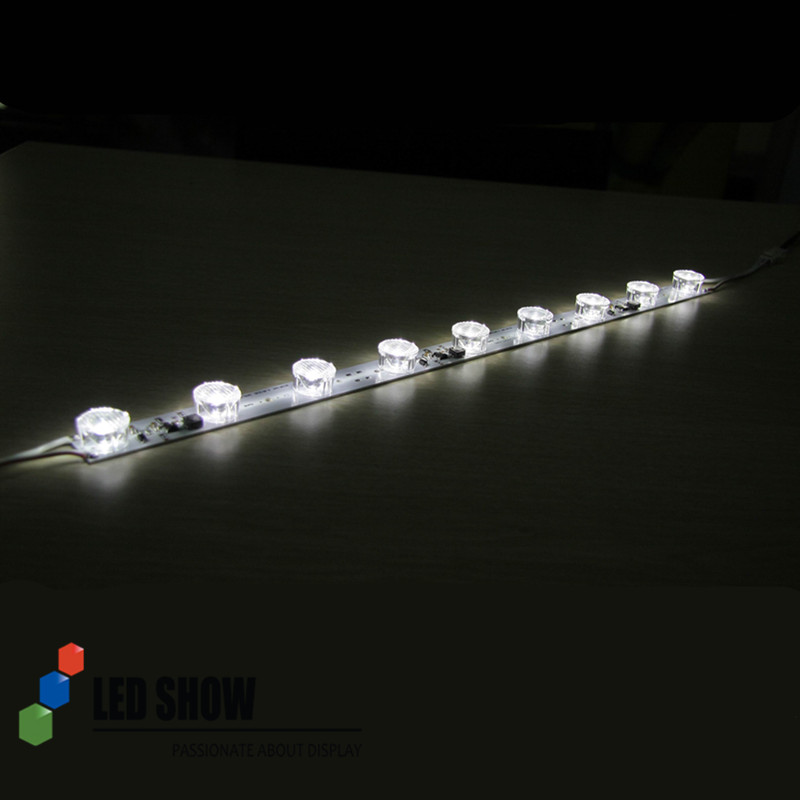

The super brightness, great uniform light effect, and easy installation are the main obvious features. The DC12-30V input/output voltage is very safe for usage.

The inner constant voltage curcuit design and outer constant current design of LED light bars make the lights working more steady.

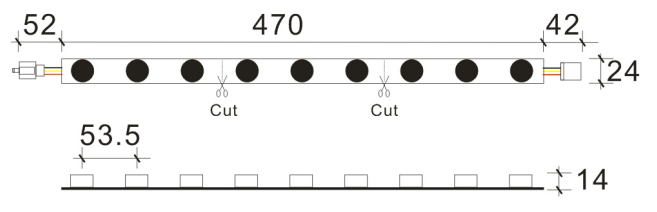

Sizes of LED LIGHT BARS:

Each 3 LEDs cuttable.

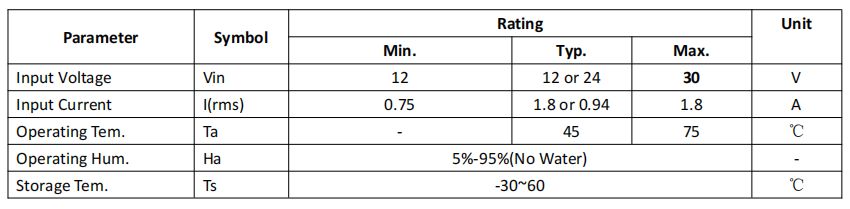

Parameter of 12v LED bars:

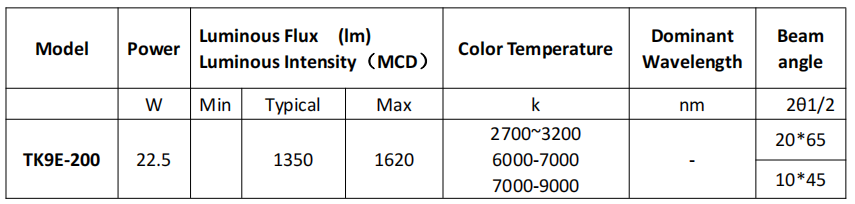

Specification of Osram LED light bars:

Remarks:

DC24V input voltage is suggested for this osram led strip. LED circuit works within the constant current curve, when LED bar input voltage is lower, the input current is higher, because the total power of ad LED should be constant, when the input voltage is higher, the input current is lower. The lower current has higher efficiency and can reduce the temperature on the aluminum board. Simply to say, DC24V input voltage has lower working temperature than that of DC12V input voltage.

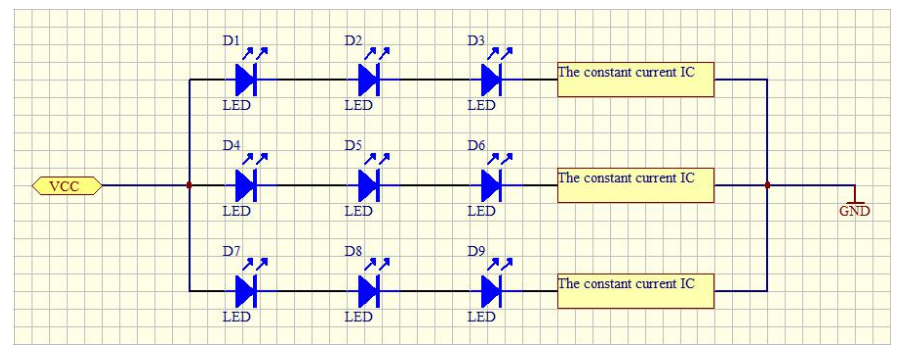

Curcuit design of osram light bar:

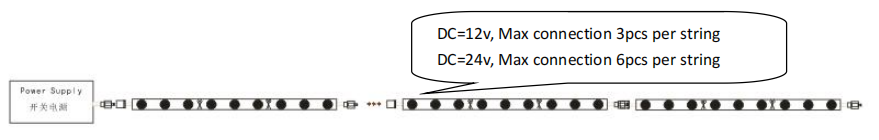

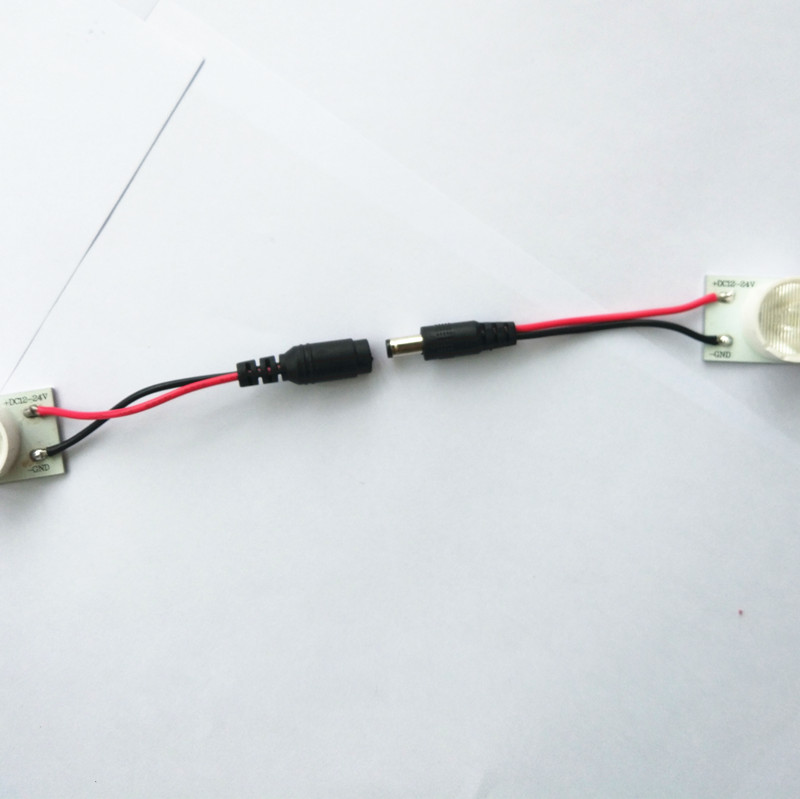

Connection Instruction of osram led light bar:

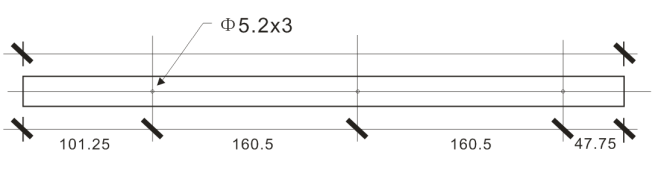

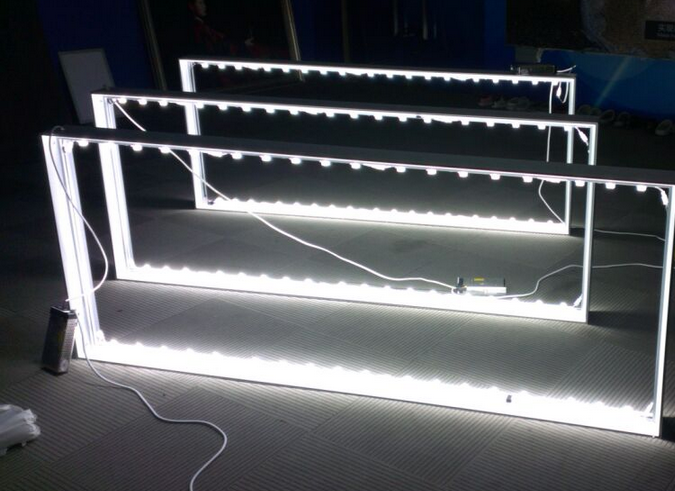

Installation Instruction:

Come and contact us, you deserve good quality and considerate service from us.
